THUNDERBEAT/SONICBEAT Instruction

BIPOLAR
For bipolar HF cables (connection of instruments, e.g. HiQ+ Bipolar hand instrument)

International standard
2-pin plug

Erbe standard
1-pin coaxial plug

Olympus UNIVERSAL socket

For TURis / TCRis Saline cable and PK instruments including instrument recognition

Saline cable for OES Pro resectoscope
Presettings are stored: SalineCut 200 W, Effect 2, SalineCoag 120 W, Effect 2

MONOPOLAR 1
For monopolar HF cables (connection of instruments, e.g. resectoscope, hand instrument or pencil device)

International standard
3-pin plug (4 mm diameter)

Bovie standard
1-pin plug (8 mm diameter)

Banana plug
1-pin plug (4 mm diameter)

MONOPOLAR 2
For monopolar HF cables (connection of instruments, e.g. resectoscope, hand instrument or pencil device)

International standard
3-pin plug (4 mm diameter)

Erbe standard
1-pin plug (5 mm diameter)

Banana plug
1-pin plug (4 mm diameter)

Split or non-split neutral electrodes
2-pin female plug

Optional item
Cable for non-corded neutral electrodes: MAJ-814

Select
Touch relevant area to change settings.

Change
Power level:
Effect:

Change
Mode: Touch relevant area to change mode.

Select saved procedure settings
NOTE: To save / delete procedure settings, go to menu (see below).

Footswitch
Assign single or double footswitch to socket or activate AutoStart.

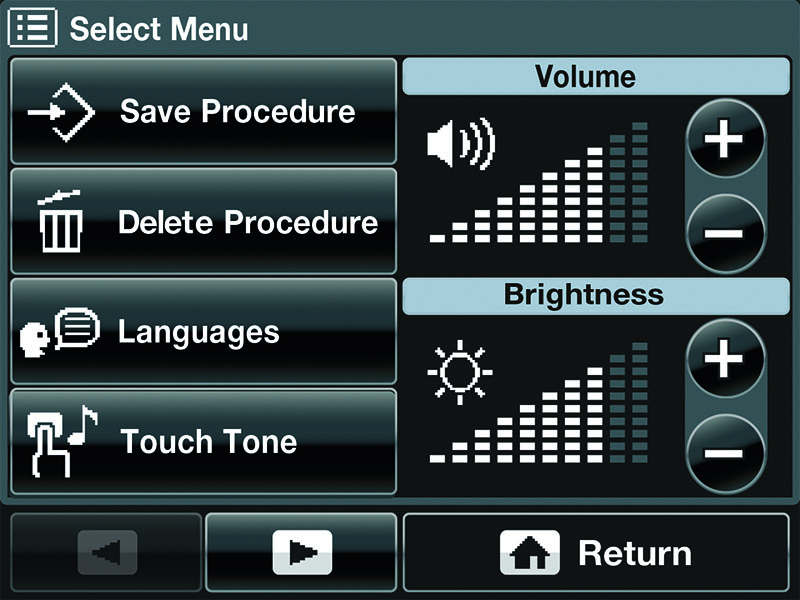

Menu
Save / delete procedure settings, choose language, etc.
